Da Capo al Coda plays a piece up to the D.C. al Coda symbol, then jumps back to the beginning of the piece, looks for the Coda Flag then jumps to the Coda and finishes the piece at D.C. al Coda. Da Capo al Coda can be added to your score from the Repeats & Barlines Tab and by clicking on the Da Capo icon. You must now select the al Coda mode. Instructions at the bottom of Music Jotter will aid you on the order in which to click on the measures for placement. But the diagram below will also aid you.
The barline/repeat tab is responsible for various types of repeats (Da Capo, Dal Segno) and other barline options.
Selecting D.C. al Coda
Click on the Da Capo icon and select mode al Coda.

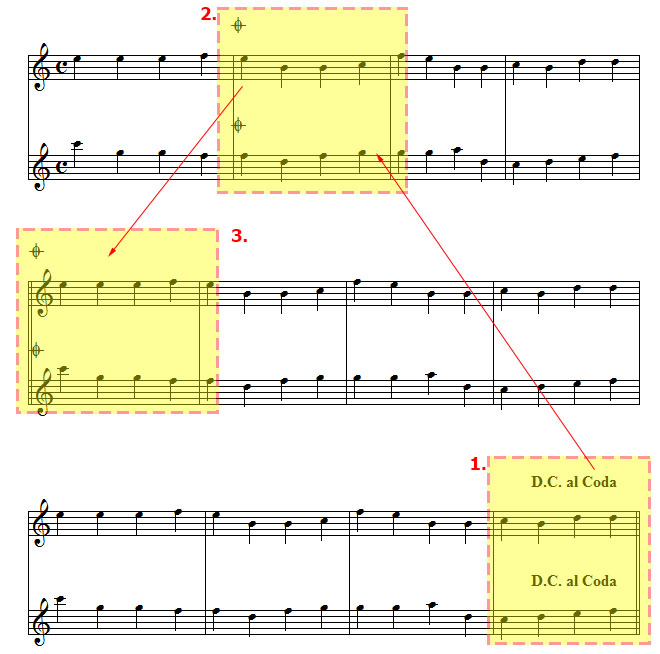

Implementation Diagram
- Select the measure to place D.C. al Coda.
- Select the measure to place the Coda Flag.
- Select the measure to play the Coda. The Coda plays until D.C. al Coda.
Plays until D.C. al Coda, jumps to the beginning of the piece, looks for the coda flag, jumps to the coda and finishes the piece at D.C al Coda.
Removing Da Capo al Coda
If you wish to remove Da Capo al Coda select the Clear All icon located under the Special Repeats group.
